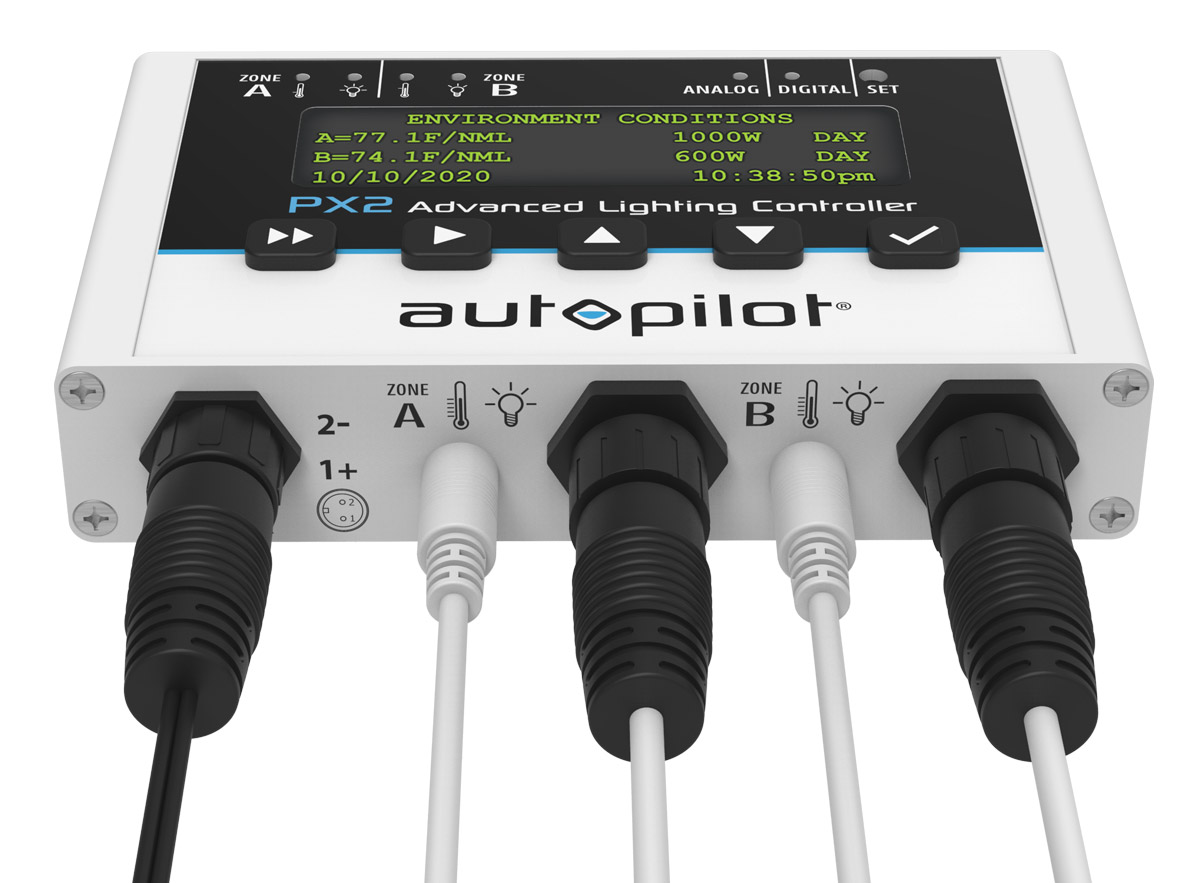

Autopilot PX2 Advanced Lighting Controller

Product Details

The Autopilot PX2 Advanced Lighting Controller provides precision photoperiod control of up to 512 fixtures in two independently controlled zones, all from one centralized location. Designed to work with any controllable PHANTOM DE fixtures, as well as PHANTOM LED fixtures, the PX2 can control 512 digital DE fixtures (256 per zone), or 100 analog LED fixtures (50 per zone). The PX2 offers the flexibility to operate both zones analog or digital, or one zone analog and the other digital.

Product Documents

Instructions Technical Data Sheet

Have questions? We have Answers!

Features Sunrise/Sunset Simulation Multi Language Support Dual Zone Control

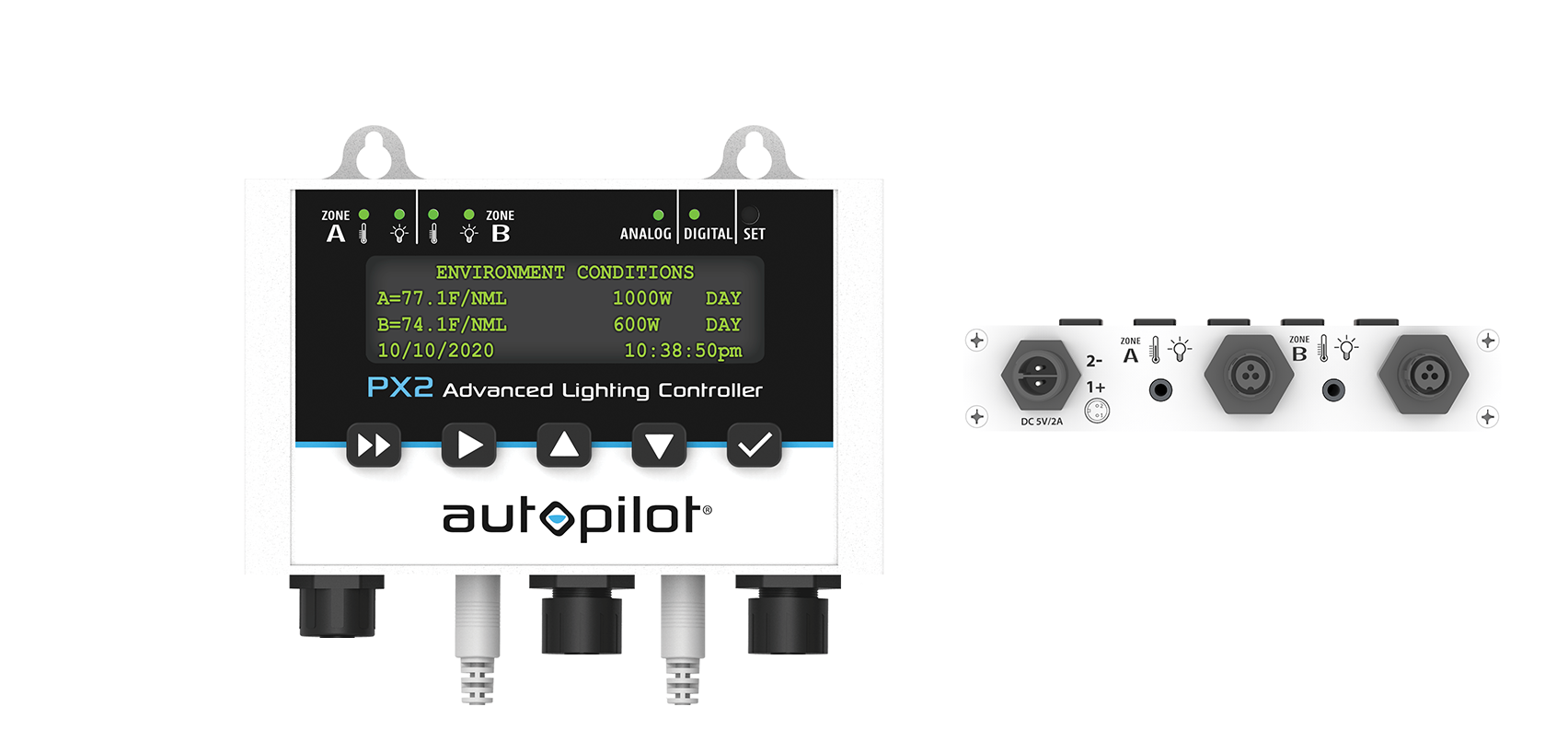

Product Features

Dual zone control: 512 digital HID fixtures (256 per zone), or 100 analog LED fixtures (50 per zone)

Built-in battery backup

Operate both zones analog or digital, or one zone analog and the other digital.

Easy to read LED display

Signal port Zone A

Signal port Zone B

Voltage: 100-240V 50/60Hz 0.3 Amps

Temperature probe port Zone A & B

These sensors provide real-time data for automated temperature-based dimming, as well as a high temperature shutdown feature that protects your garden. The PX2 eliminates inrush current and replaces traditional lighting contactors, reducing infrastructure investment.

Autopilot-PX2_Sunrise-Sunset

Sunrise/Sunset Simulation

The Autopilot PX2 Lighting Controller offers sunrise/sunset simulation settings to provide a gradual ramp-up and down at both ends of your photoperiod.

Autopilot-PX2_Multi-Language

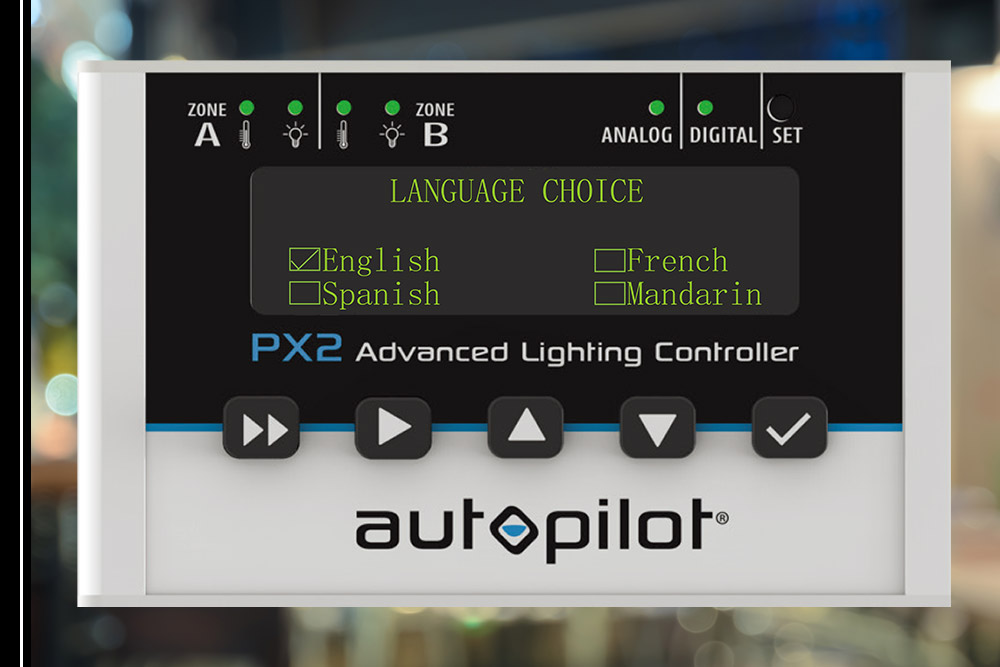

Multi Language Support

The Autopilot PX2 Lighting Controller offer the ability to choose between 4 different languages, English, Spanish, French, and Mandarin/Chinese.

Autopilot-PX2_Dual-Zones

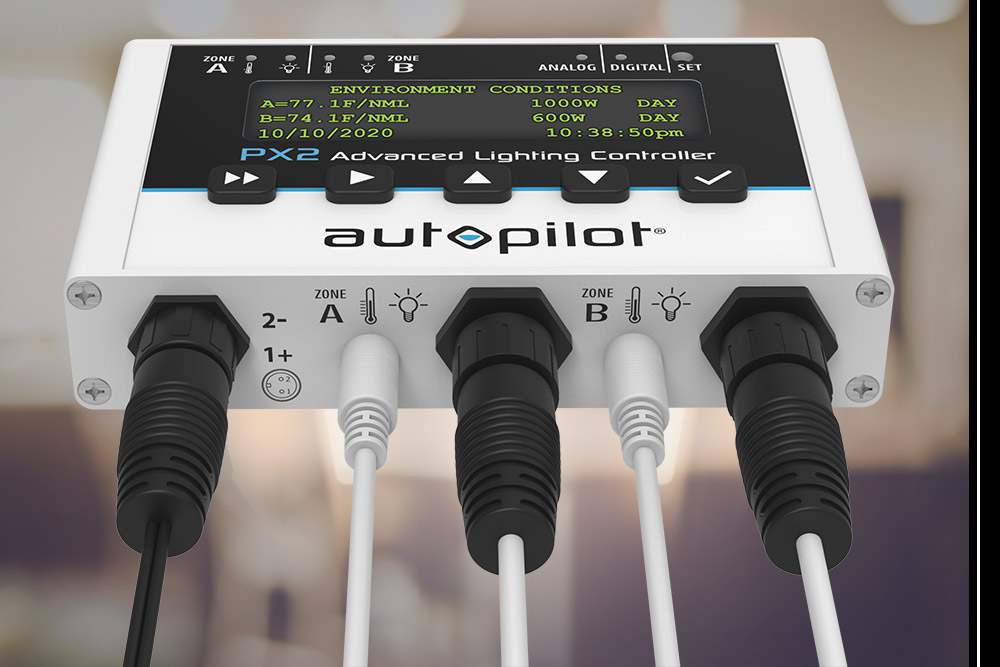

Dual Zone Control

The Dual Zone feature allows you to controll two seperate grow rooms or optimize spectral treatments by checkerboarding lighting technologies within the same environment.

Why Choose Autopilot PX2

Photoperiod Timing

Photoperiod timing to control light and dark cycles

Auto-Dimming

Auto-dimming when temperature exceeds set points

Emergency Auto-Shutdown

Emergency auto-shutdown of lights upon user-defined over-temperature events

Restrike Delay

Configurable restrike delay times to eliminate lamp-damaging hot starts

Sunrise/Sunset Settings

Sunrise/sunset simulation settings to provide a gradual ramp-up and down at both ends of your photoperiod

Battery Backup

Built-in battery backup in case power to the unit i disrupted

Temperature Sensors

Two dedicated temperature sensors, one for each zone
