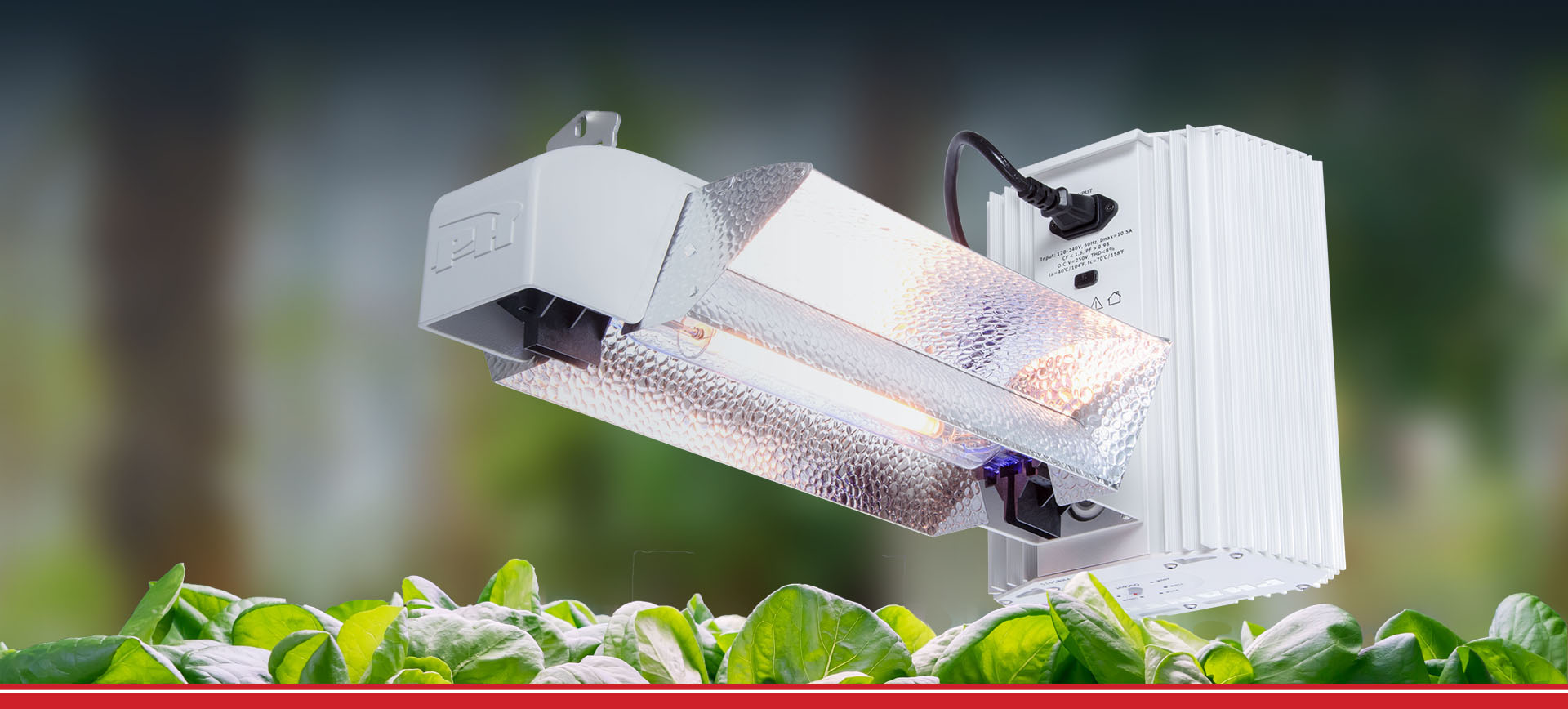

PHANTOM 50 Series DE Lighting System
PHANTOM 50 - Right
PHANTOM 50 - Right

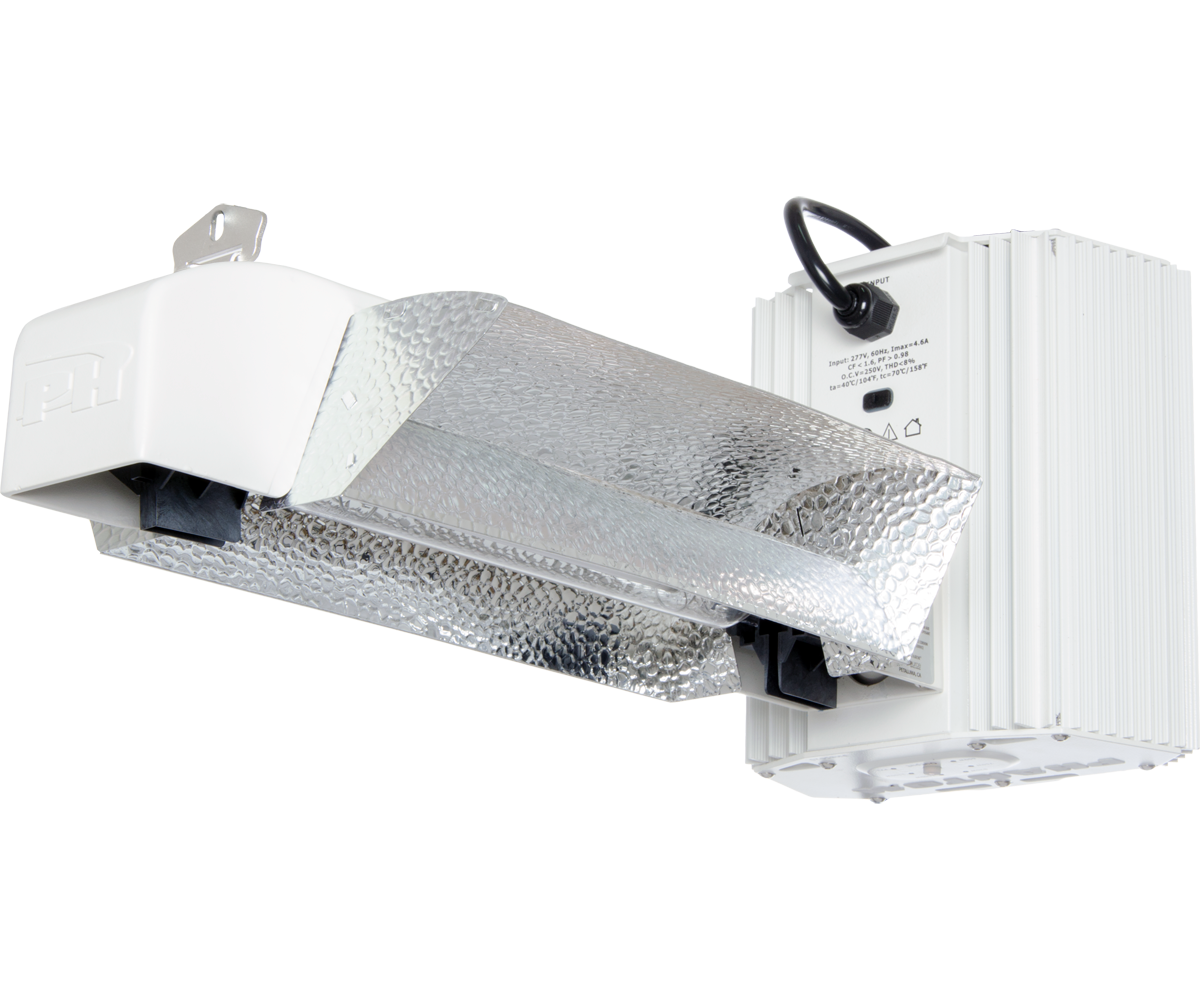

PHANTOM 50 - right-lights off

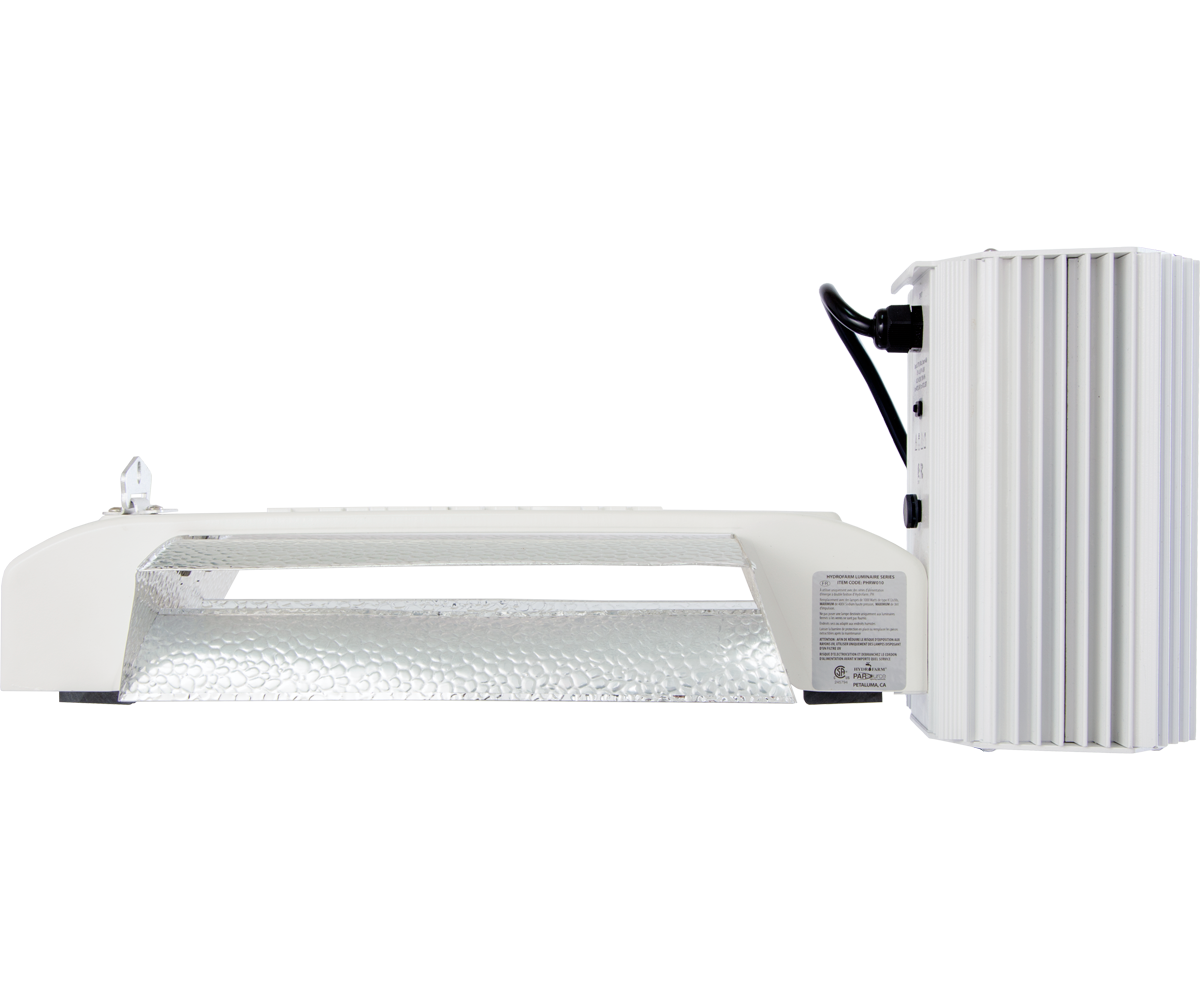

PHANTOM 50 - Side

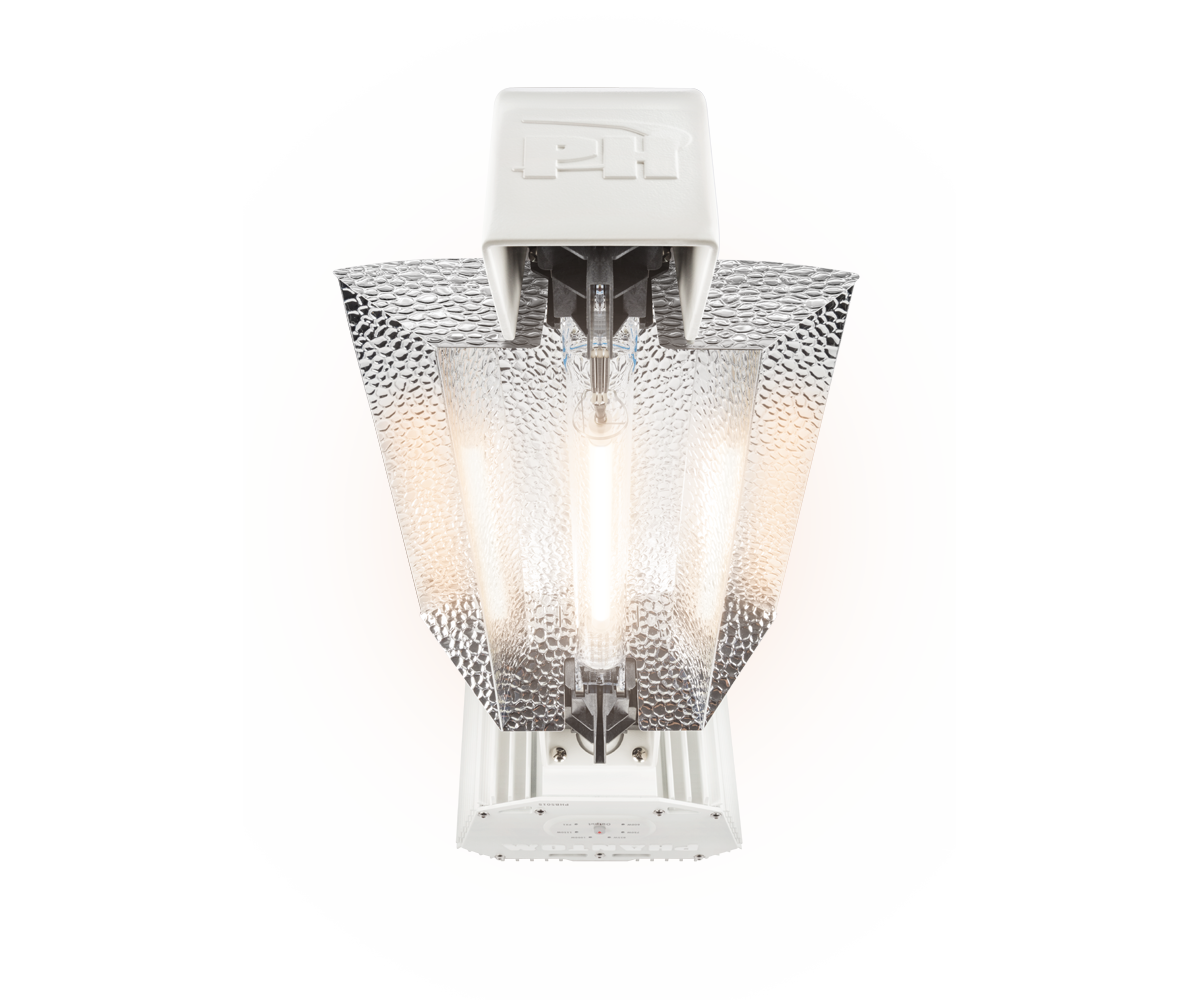

PHANTOM 50 - Front bottom
PHANTOM 50 - Bottom

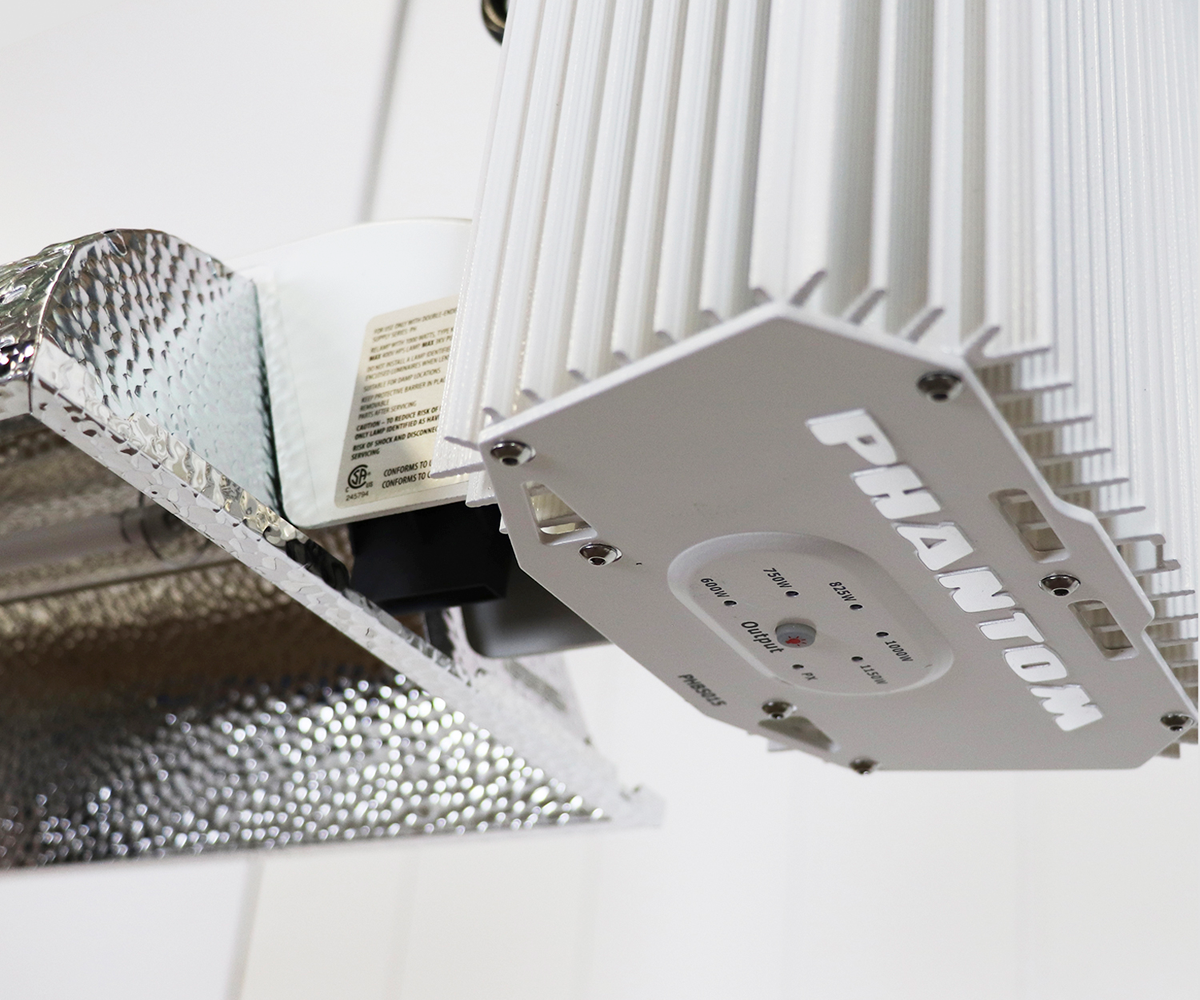

PHANTOM 50 - Dimming

PHANTOM 50 Series, DE Lighting System, 1000W, 208/240V


Product Details

The Commercial DE Open Lighting System features state-of-the-art double-ended technology that uniformly delivers optimum PAR value over a broad footprint.

At the heart of this system is the PHB5015 Phantom Commercial DE Ballast with USB Interface. Its USB interface enables connection with the Autopilot PX Series Advanced Lighting Controllers.

  • High-precision microprocessor control
  • Six-way wattage output control: 600W, 750W, 825W, 1000W, and 1150W + PX2 control mode
  • Robust commercial design
  • Superior reliability
  • LED status indicator
  • Internal RF shielding
  • Patented ignition control
  • End of lamp life signal
  • Auto-restrike feature protects valuable lamps from damaging power interruptions
  • Cooling fins for maximum heat dissipation
  • Premium aluminum European hammertone interior: 99.85% pure, 95% reflectivity



Product Documents
Have questions? We have Answers!

Feature-Callout_Phantom-50_Unsurpassed-Performance

Superior Reliability

PHANTOM 50's robust commercial design delivers unsurpassed performance and reliability with features like: High-precision microprocessor control, Internal RF shielding, Auto-restrike technology, and open circuit protection.

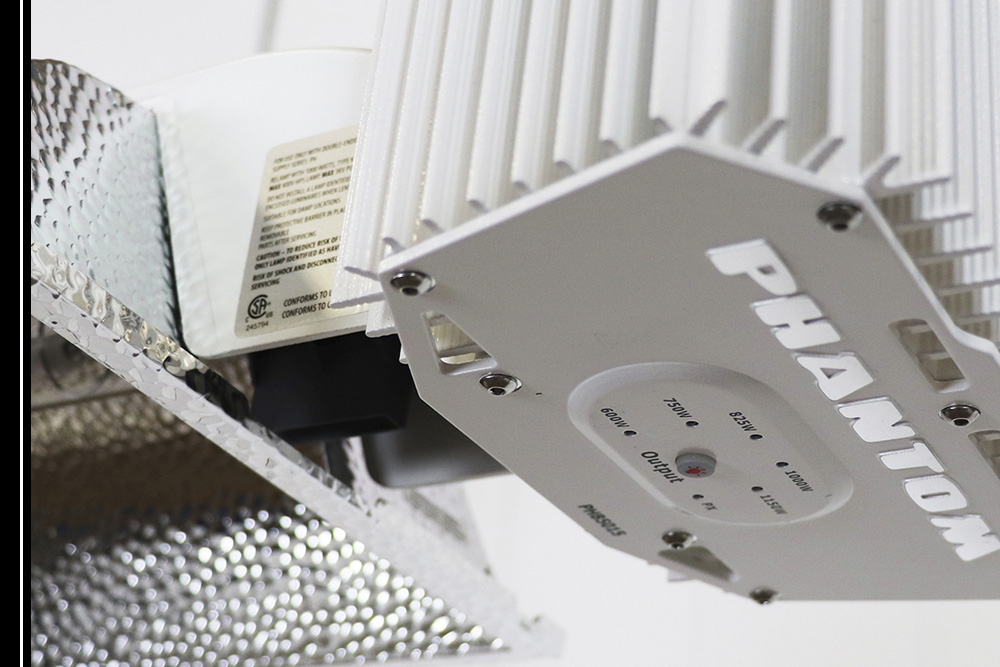

Feature-Callout_Phantom-50_Dimming

Onboard Dimming

The PHANTOM 50 has six-way wattage output control: 600W, 750W, 825W, 1000W, and 1150W + PX setting which alows you to control the luminair with an external controller such as the PX2 Controller.

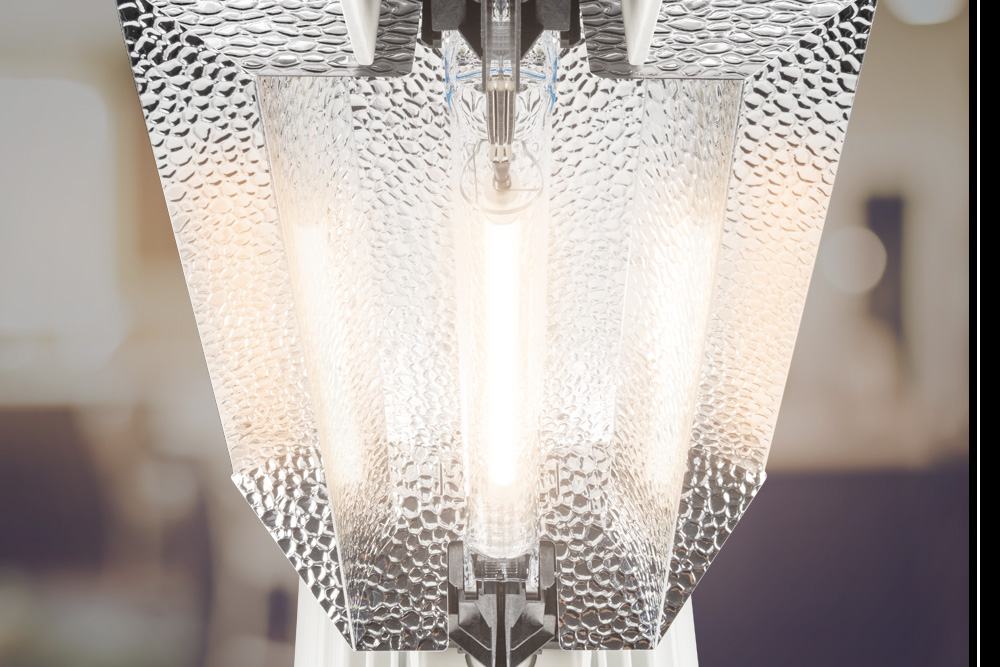

Feature-Callout_Phantom-50_Hammer-Tone

Highly Reflective

Premium aluminum European hammertone material: 99.85% pure, 95% reflectivity. Availabel in open or enclosed reflector style.

USB Interface

Provides full compatibility with Autopilot PX2 series Digital Lighting Controller

Durability

Robust commercial design

Auto-restrike Feature

Protects valuable lamps from damaging power interruptions

Superior Heat Dissipation

Cooling fins for maximum heat dissipation

Double-Ended System

Delivers higher PAR value with excellent uniformity

LED Status Indicator

LED status indicator alerts you when something is wrong with your system
